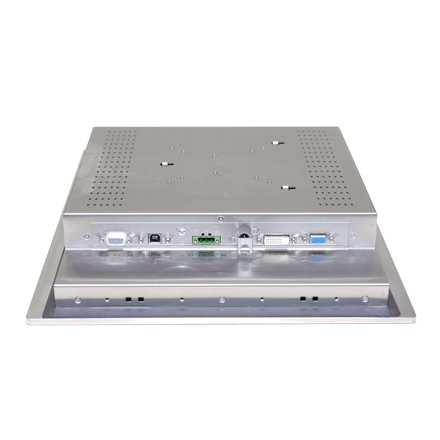

FPM-8151H

15" XGA Industrial Monitor for Hazardous Location, with 316L Stainless Steel Front Panel
  • 15″ XGA TFT LCD with LED backlight
  • Stainless steel 316L front panel
  • IP65 front panel
  • -20 ~ 60°C (-4 ~ 140°F) wide operating temperature range
  • Enhanced 5-wire resistive touch panel
  • Direct VGA & DVI-D video input interface
  • Combo RS-232 & USB interface for touchscreen function
  • Supports 24 VDC input and 100~240 VAC input (optional AC adapter)
  • OSD control pad with lockable function on front panel
  • Meets hazardous requirements with UL CID2 certification
Indent
Get Quote

Introduction

The FPM-8151H is a particularly rugged and reliable 15” XGA wide temperature industrial monitor for a variety of industry applications. Equipped with a wide operating temperature range of -20 ~ 60°C (-4 ~ 140°F), it can satisfy demands in a wide range of harsh industrial applications. This model also features enhanced 5-wire resistive touch and system isolation to enhance the reliability. Moreover, FPM-8151H is designed to be safely operated in these locations and is undergoing certification to be UL listed for Hazardous Locations with Class I, Division 2.

Specification

FPM-8151H-R3AE
Display Screen Size 15″
Viewing Angle (H/V°) 160/140
Backlight Life (hrs) 50000
Colors 16.2 M
Luminance (cd/m2) 400
Direct VGA Input Yes
Front Panel Ingress Protection IP65
Max. Resolution 1024 x 768
class=”last”>16.2 M
Contrast Ratio 700:1
DVI Input Yes
Display Size 15″
Physical Specifications Dimensions (W x H x D) 422 x 338 x 68 mm (16.61″ x 13.31″ x 2.68″)
Power Supply Power Input 100 ~ 240 V
Power Adapter 100 ~ 240 V
DC Power Input Phoenix Jack: 24 V DC input
Miscellaneous Certifications BSMI, CCC, CE, FCC, UL,C1D2
General Power Input External 50 W power adapter, with AC 100 V ~ 240 V, input and DC +12 V @ 4.16 A output
Mounting Panel, wall, desktop, VESA arm, or 19″ rackmount with optional mounting kit
Enclosure Front panel:Stainless
OS Support Windows 7/XP/XPe/CE, Linux
Weight (Net) 8.5 kg (18.7 lbs)
Weight (Gross) 9.0 kg
Button Controls OSD (Onscreen Display) control pad on front panel
Video Port VGA & DVI-D
Environment Temperature (Operating) -20 ~ 60° C (-4 ~ 140° F)
Temperature (Storage) -20 ~ 60° C (-4 ~ 140° F)
Humidity 10% ~ 95% non-condensing
Vibration Protection 5 ~ 500 Hz, 1 Grms (Operating, Random)
Waterproof Front Panel IP65 Compliant
Touchscreen Lifespan 35 million
Type Resistive
Touchscreen (Optional) Interface Combo RS-232 & USB interface
Light Transmission > 80%
Touch Resolution Linearity
